CUSTOM BUILDS

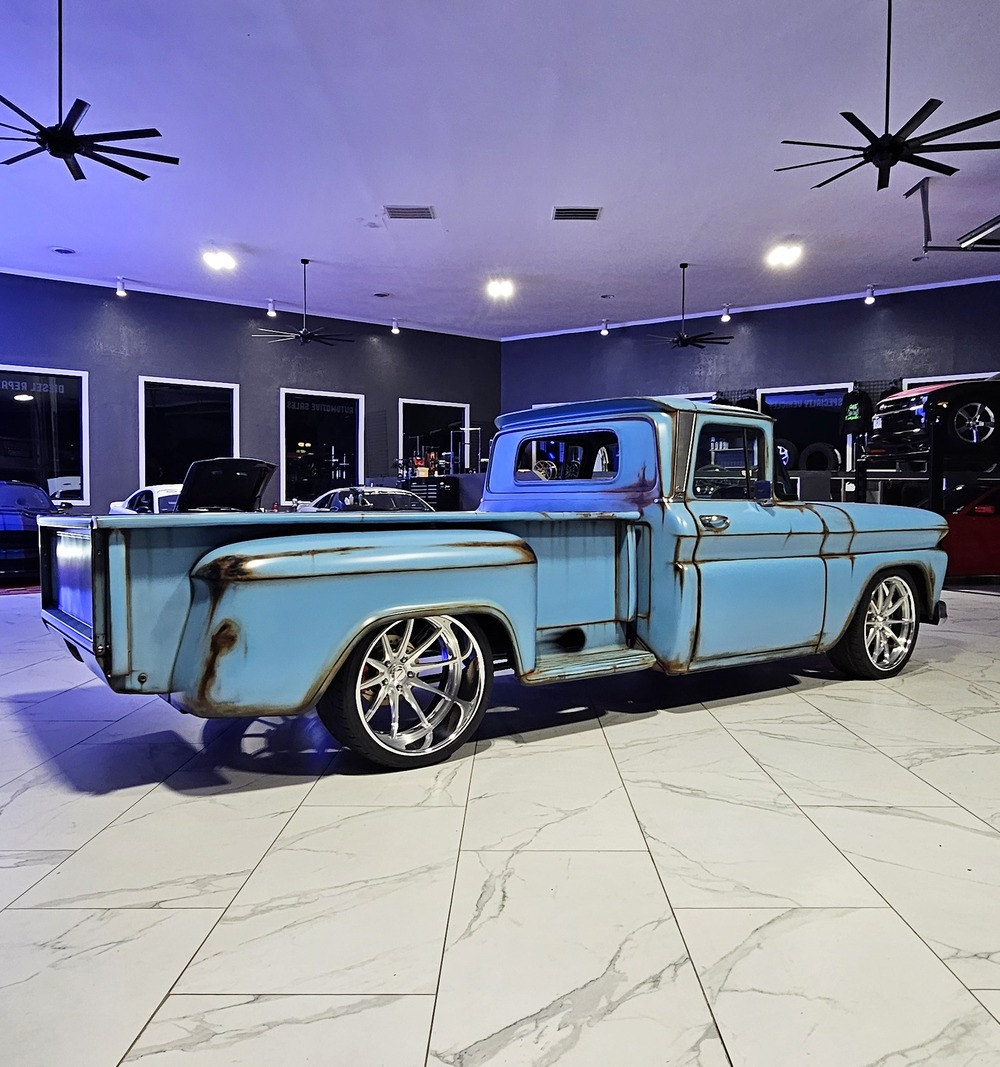

Custom Built 1960 C10 Stepside Completed

This Custom Build Was Completed For Larry Herzing Of Columbia Mo And Can Be Seen At Many Car Shows And Cruises Around Our State And Beyond. His 1960 C10 Was Bought New By His Grandfather Hermann Moeller And Has Been In The Family Since. The C10 Spent Most Of Its Life On The 500 Acre Family Farm In Wardsville Mo Where His Mother Grew Up Riding In This Truck With Her Father Hermann. In January Of 1997 Larry Was Able To Purchase The Truck From His Grandmother’s Estate And He Plans To Keep It In The Family For Many More Years To Come.

We Spent Nearly 1000 Hours Custom Building This C10 To Bring It Back To Its Original Color With A Story Of The Past And New Parts Of Today. Now It’s Where The Entire Family Can Enjoy It For The Next 100 Years Or More… Larry’s Vision Of A Driver Quality Family Truck Is Now Complete And We Thank Our Entire Team For Bringing This Vision Into Reality. Completed in June 2024.

Engine

ENGINE:

580hp LS
SS2 Hot Street Cam
799 Cylinder Heads
Black Diamond CVF A/C Front Accessory Kit
ECM 70051 Engine Management System With Trans Controller
Hidden Coils On Back Side Of Heads
Aeromotive Fuel System
Gm Black Valve Covers
CX Racing Motor Mounts
92mm Throttle Body
36lb Injectors
New 4 Core Aluminum Radiator
Custom Shroud With Dual Electric Fans
Custom Built AC Lines
Custom Built Coolant Lines
All Hidden Wiring

Transmission

TRANSMISSION:

4L80E Built To Hold 750hp
Custom Trans Cooler With -6 AN Lines

Exhaust

EXHAUST:

Long Tube Stainless Ceramic Headers
Custom Bent And Welded Stainless Exhaust
20 Series Flowmasters
4″ Teardrop Side Exit Tips

Exterior and Paint

EXTERIOR AND PAINT:

Hand Sanded and Painted Patina

Hand Airbrushed To Mimic Some Original Patina

Painted Back To Original Brigade Blue

Over 150 Hours Of Craftsmanship In Paint Alone

All Original Exterior Chrome Handbrushed And Refinished

Front Bumper Tucked And Flipped Upside Down

Frame

FRAME:

1977 Cut And Stripped Frame

Fully Stripped, Sanded and Prepped

Powdercoated Black

New Fuel -6 An Lines

New Brake Lines With Braided Stainless Ends

Boxed In Frame At 4 link Connection

Summit 10 Gallon Fuel Cell

Twin 5 Gallon Hand Brushed Air Tanks

Twin Viair Air Compressors

Suspension

SUSPENSION:

Custom 4 Link Rear Suspension
4 Corner AccuAir Ride Control System With Remote and Bluetooth
Narrowed 9 Inch Rear End Shortened To 50″
Wilwood Disc Conversion Front and Rear
Wilwood Master Cylinder
Wilwood Booster
Wilwood Proportioning Valve
Wilwood 2pc Front Rotors
Wilwood Rear Rotors
CCP Tubular Upper Control Arms
CCP Tubular Lower Control Arms
QA1 Shocks Front and Rear
Custom Hand Built Rear Air Bag Mounts

Wheels and Tires

WHEELS AND TIRES:

Custom Built Schott Wheels 22×12 Rear 22×9 Front
265/35R22 Toyo Proxes Front
335/25/R22 Toyo Proxes Rear

Interior

INTERIOR:

Painless Wiring Kit
Distinctive Industries Black Seat
Custom Built Dash With Push Button Start
PCS Push Button Gear Select With Hand Made Insert
New Vintage Air and Controls
Suede Speaker Pods
Suede Rear Sub Box
New Black Carpet Stretched To Fit
Hand Patina and Painted Dash
Stainless Steering Column
Impala Steering Wheel
Dakota Digital Gauges
Dakota Digital Fan Controller
Guard Dawg Keyless Entry With Remote
Power Window Conversion
Retro Sound Audio System
Entire Cab And Firewall Lined With Sound Deadening

Bed

BED:

Custom Patina
Hand Brushed Aluminum Rails
Stained And Burnt Walnut Wood Floor
Mini Tubbed Rear To Fit Narrowed 9″ And Custom Wheels
New Brushed Hardware On Tailgate
Custom Patina Rollpan

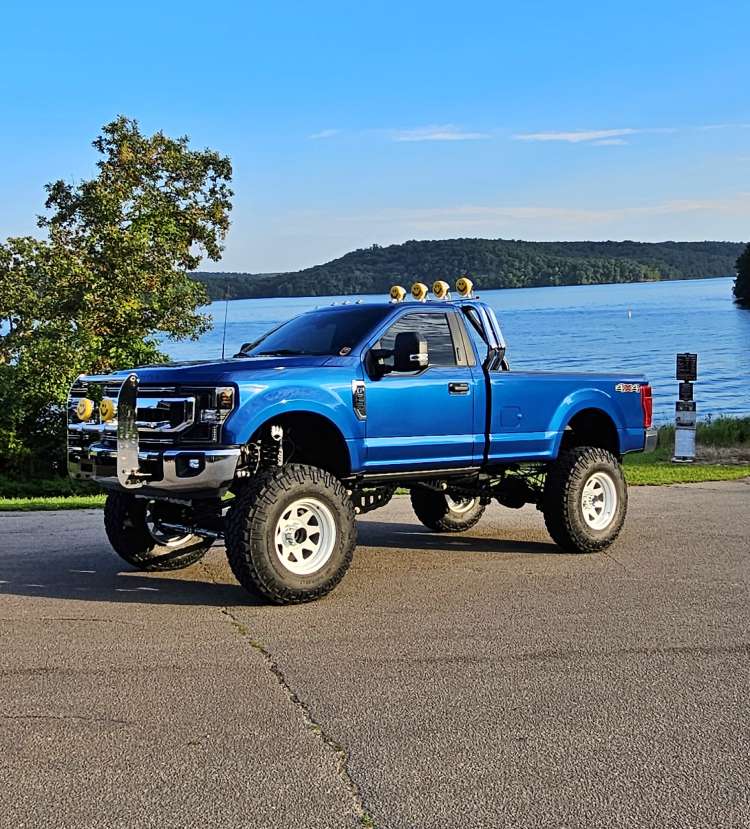

2020 F250 7.3 GODZILLA
"Mini Bigfoot Build"

Engine

Engine:

  • 7.3 Godzilla Stock Lower End
  • Heads Machined And Studded
  • Comp Stage 2 NSR Cam
  • 95lb Deatsch Werks Injectors
  • Manton Custom Length Pushrods
  • LS Short Travel Lifters
  • Cam Phaser Limiter Kit
  • AN -6 Fuel Adapters And Lines
  • X4 Sct Programmer (pass thru device)
  • NGK Iridium IX Spark Plugs
  • S&B Filter

Supper Charger

Supercharger:

  • TVS 2650 Harrop Blower
  • Custom Air To Water Intercooler
  • New Designed Pulley System To Fit Charger
  • New Designed Coolant System To Fit Charger

Exhaust

Exhaust:

  • Stainless Works Long Tube Headers
  • Stainless Works Redline Dual Exhaust
  • High Flow Cats
  • Electronic 3″ Cutouts
  • 30 Series Mufflers

Suspension

Suspension:

  • Custom 10″ Wicked Superduty Lift
  • Fox Reservoir Shock Upgrade
  • Fox Dual Steering Stabilizer
  • Custom Cut Traction Bars
  • Torque 24 Led Rock Lights
  • Cleaned, Prepped, & Painted Frame

Wheel & Tires

Wheels and Tires:

  • 8×170 8 Spoke White Wheels Custom Built
  • 42×13.50R20 Nitto Trail Grapplers
  • 1.5″ Forged Adapters
  • 6 Spline Locking Lugs

Gearing

Gearing:

  • 4.88 Front And Rear Gear Package

Exterior

Exterior:

  • Rhino Dual Roll Bar
  • Custom Chromed Push Bar
  • KC Lights
  • Black & Yellow KC Covers
  • Polished And Touched Up Blue

Interior

Interior:

  • Custom Blue and Black Katskin
  • Cleaned, Prepped, And Painted Grey To Black Plastic
